This month has seen a bit of a slow down as September seemed to be "a bit too busy" as a result a few of us nearly "hitting the wall" but others did - Good to see Ros is getting back on her feet.
Despite this some further work on control panels, more ballasting, programming BJ's Empire Builder Locos, the commencement of many operation trials, a visit by BJ's grandson some more rolling stock unpacked, an update on the Aux-Box problem and RDC Decoder install.
Control Panels
During the first operation trial Chris found himself moving between the length of Hornertown yard a number of times which will be significantly reduced with the wiring of the West & east sub panels so the operators do not have to do all turnout controls from the center of a 8 metre long yard.
Hornertown East control panel remains...
On a subsequent Monday night round robin Chris and Bill2 laid and spread the base ground cover material ready for BJ to add colour textures and light vegetation.
Chris ad BJ then glued the whole lot on the following Tuesday work session
I have encounter a spasmodic electrical fault when the current load gets to just under two amps. It is repeatable in all booster sections. The boosters are supposed to be rated at 3.2 amps each. More investigation is required here.....
It is safe to say the Roco / Fleischmann DCC systems are NOT compatible with the AuxBox product.
The solution was to take my spare Roco system heart into the modelling room and hook it up to the Lenz LIUSB-Ethernet interface and replace the MRC Prodigy Squared system I had been using with my SprogII and DecoderPro and use it to control a separate DCC Bus for the accessory decoders. I am only using the accessory decoders for roundhouse & staging track power control and a illuminated Miller sign and a track side sound module.
The MRC system was placed next to the main control panels which is where the staging and Roundhouse tracks were to be controlled from anyway. Not a perfect but a workable solution.
I used a Digitrax SDH164D decoder as they are the only manufacturer that has a sound scheme for a RDC.
I gutted the factory DCC Ready board and light bulbs and replaced with the SDH164D and LED's. I still have all the functions other than forward/reverse lights to do at a later stage.
In order to load the sound scheme I need access to a Digitrax PR3 or similar connected to a PC in order to replace the existing sound bites on the decoder and this will be achieved when I visit my mate Peter at Traralgon in December.
I am sorry I did not take any photos showing the installation - perhaps I'll do some when I put the red tail lights, interior lighting and passengers in at a later date.
The finished product.
Thanks to all those that continue to help me achieve my ambitions..
Till next month.
Hornertown
The double slip indications have been installed.
Circuit boards from Top to Bottom: CD unit, 12v regulated power supply, double slip status.
Wiring Looms
Two control Panel sets down and one set to go!- Hornertown West one set of 6
- Flintston 2 sets of 8 and one set of 4
Hornertown West
The six core feeders to the point motors have been installed and terminated and the panel wiring awaits.
Hornertown East
The six core wires have been installed but all still need terminating at the control panel end. The control panel has been temporarily removed to limit the long reaching whilst doing scenery work in the South East corner of the layout ad the bottom decks are 3 feet deep so the reach in the corner is bad enough!
Hornertown East control panel remains...
Ballasting
Hornertown Yard
BJ started and had completed a small section on the western end.
On a subsequent Monday night round robin Chris and Bill2 laid and spread the base ground cover material ready for BJ to add colour textures and light vegetation.

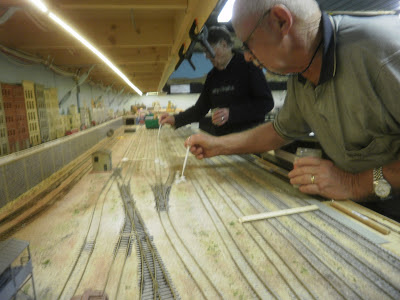

Chris ad BJ then glued the whole lot on the following Tuesday work session
Mainlines behind Flintston
The back tracks (the darker ones) are the rear tracks of the folded dog-bone double track main in the Southwestern corner of the layout. The front two are the same tracks returning from the "blob" end and the middle track emanating from the turnout on the right is a reversing section also forming a passing track in the middle of the two sets of dog-bone mainlines.
BJ's Empire Builder
I can't remember how long BJ had been talking about his Empire Builder - must be a decade or two! - well he has always said my layout would be big enough to actually run it so like the Sandgate & Southern Sunset Limited it has come to visit during our shakedown operations. The first task was to speed match the locos which had been collected over the years. Then we had a bit of fun....
Programming Locos
This one tested me a bit as there were 4 different decoders in 3 different manufactures equipment. (R to L in photo) F7A Proto 2000 QSI F7 with Mars, F7B Proto 2000 QSI F7 without Mars, Intermountain F7B with LokPilot 3.5DCC and an Athearn Genesis with a Lenz LE1014. Even the two QSI's were not speed matched even though they were bought as a set.
Test Running
The video is self evident
Operations Trials
In order to establish train schedules I will need quite a bit of info to be gathered on operational aspects over the coming weeks. Chris commenced the proceedings with the time to shunt twelve reefers from the arrival departure tracks to the icing platform and return. Using the the methodology that each pair of cars need to be stationary at the icing platform for 30 seconds to enable loading the process took 25 minutes from disconnection of the mainline loco until its re-connection.I have encounter a spasmodic electrical fault when the current load gets to just under two amps. It is repeatable in all booster sections. The boosters are supposed to be rated at 3.2 amps each. More investigation is required here.....
Visit by BJ's Grandson
BJ had the pleasure of spending some time with his young Grandson who visited South Australia from Brisbane during the school holidays. I was requested to have some trains running for him to see.Rolling Stock Unpack

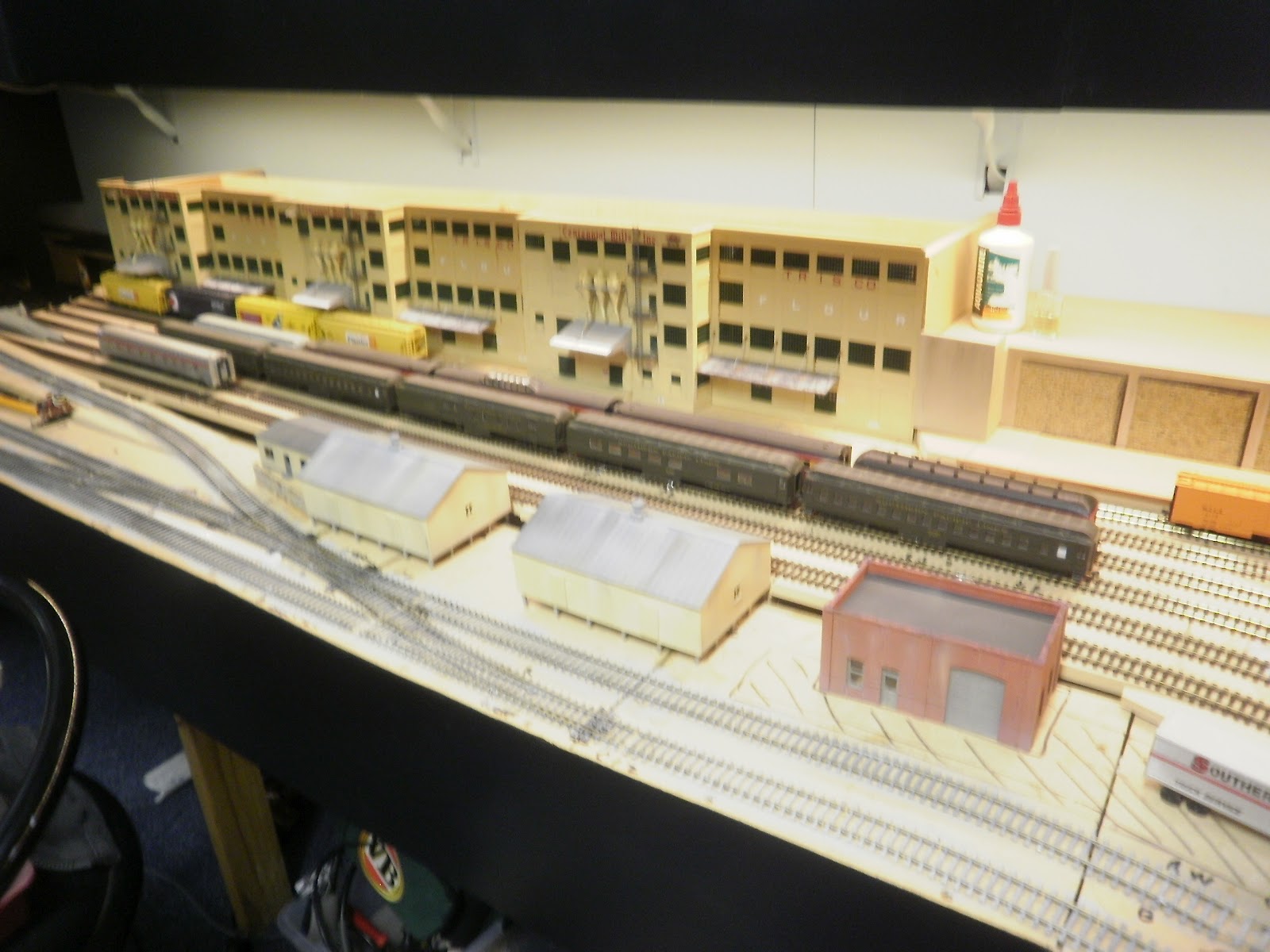

Some coaches have appeared in the coach yard....
Solution to Aux-Box problem
Last month I indicated that my Roco DCC system did not seem to want to operate the Aux-Box's I'd bought. Well after asking the manufacturer who quite rightly responded with "is the Roco system NMRA DCC compliant" I asked my LHS who referred me to the Australian manufacturer's representative in Sydney who responded "fully compliant" I realised that I mus have missed something somewhere. Well I found all the manuals and sure enough I had. The Roco system accessory decoders work off the Xpressnet bus not the DCC bus!It is safe to say the Roco / Fleischmann DCC systems are NOT compatible with the AuxBox product.
The solution was to take my spare Roco system heart into the modelling room and hook it up to the Lenz LIUSB-Ethernet interface and replace the MRC Prodigy Squared system I had been using with my SprogII and DecoderPro and use it to control a separate DCC Bus for the accessory decoders. I am only using the accessory decoders for roundhouse & staging track power control and a illuminated Miller sign and a track side sound module.
The MRC system was placed next to the main control panels which is where the staging and Roundhouse tracks were to be controlled from anyway. Not a perfect but a workable solution.
RDC Decoder Install
This was my first sound decoder install! and I learnt a few things along the way.....I used a Digitrax SDH164D decoder as they are the only manufacturer that has a sound scheme for a RDC.
I gutted the factory DCC Ready board and light bulbs and replaced with the SDH164D and LED's. I still have all the functions other than forward/reverse lights to do at a later stage.
In order to load the sound scheme I need access to a Digitrax PR3 or similar connected to a PC in order to replace the existing sound bites on the decoder and this will be achieved when I visit my mate Peter at Traralgon in December.
I am sorry I did not take any photos showing the installation - perhaps I'll do some when I put the red tail lights, interior lighting and passengers in at a later date.
The finished product.
Thanks to all those that continue to help me achieve my ambitions..
Till next month.
